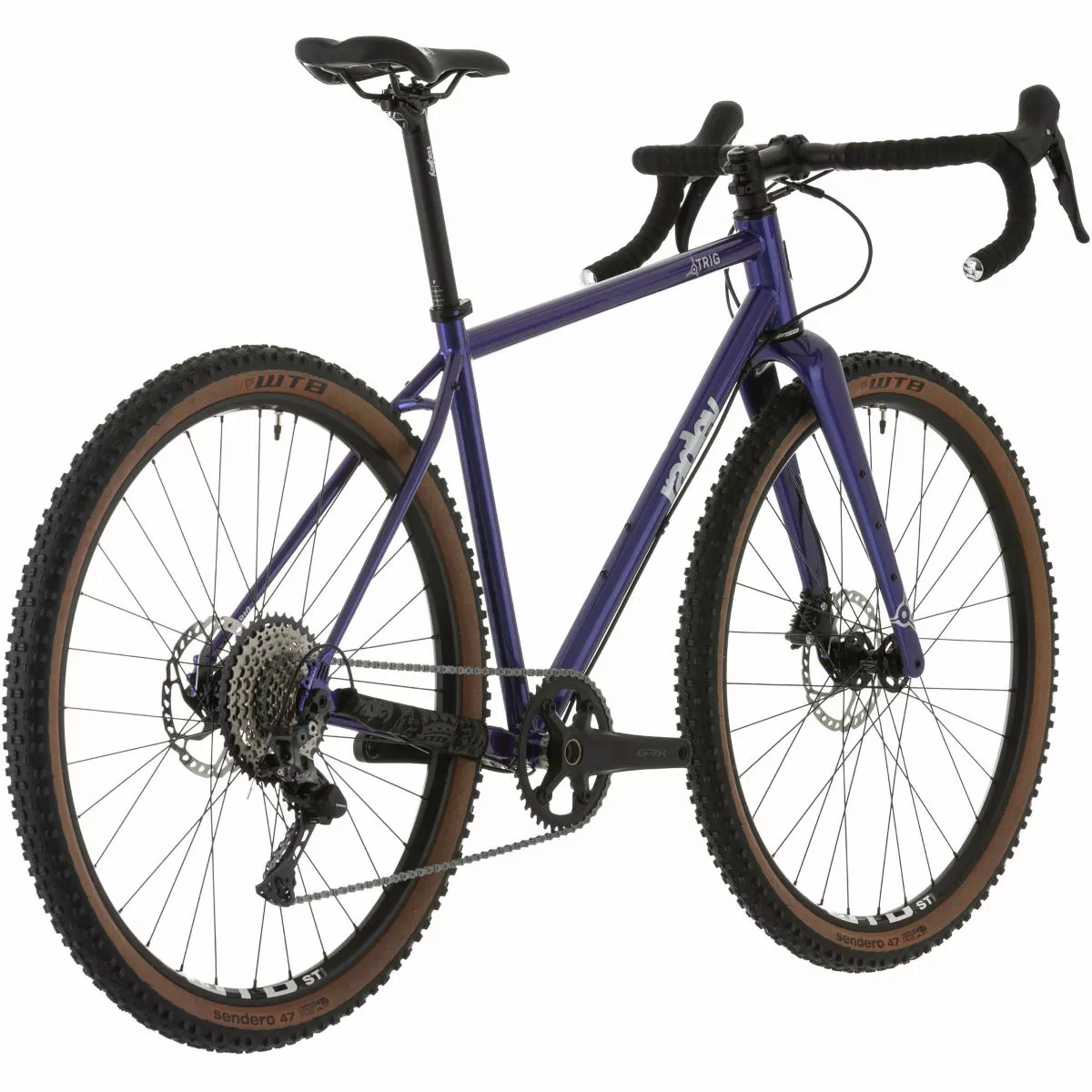

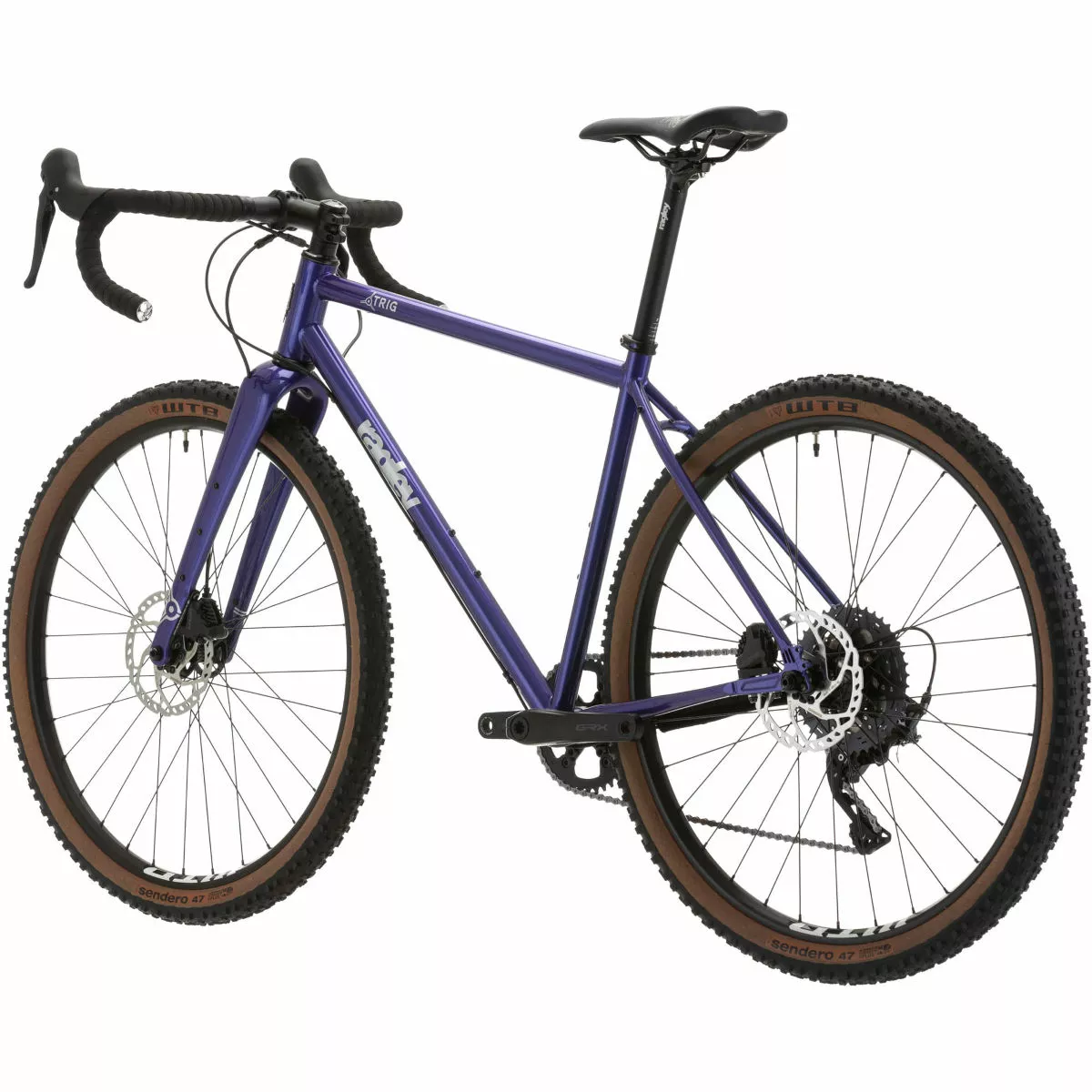

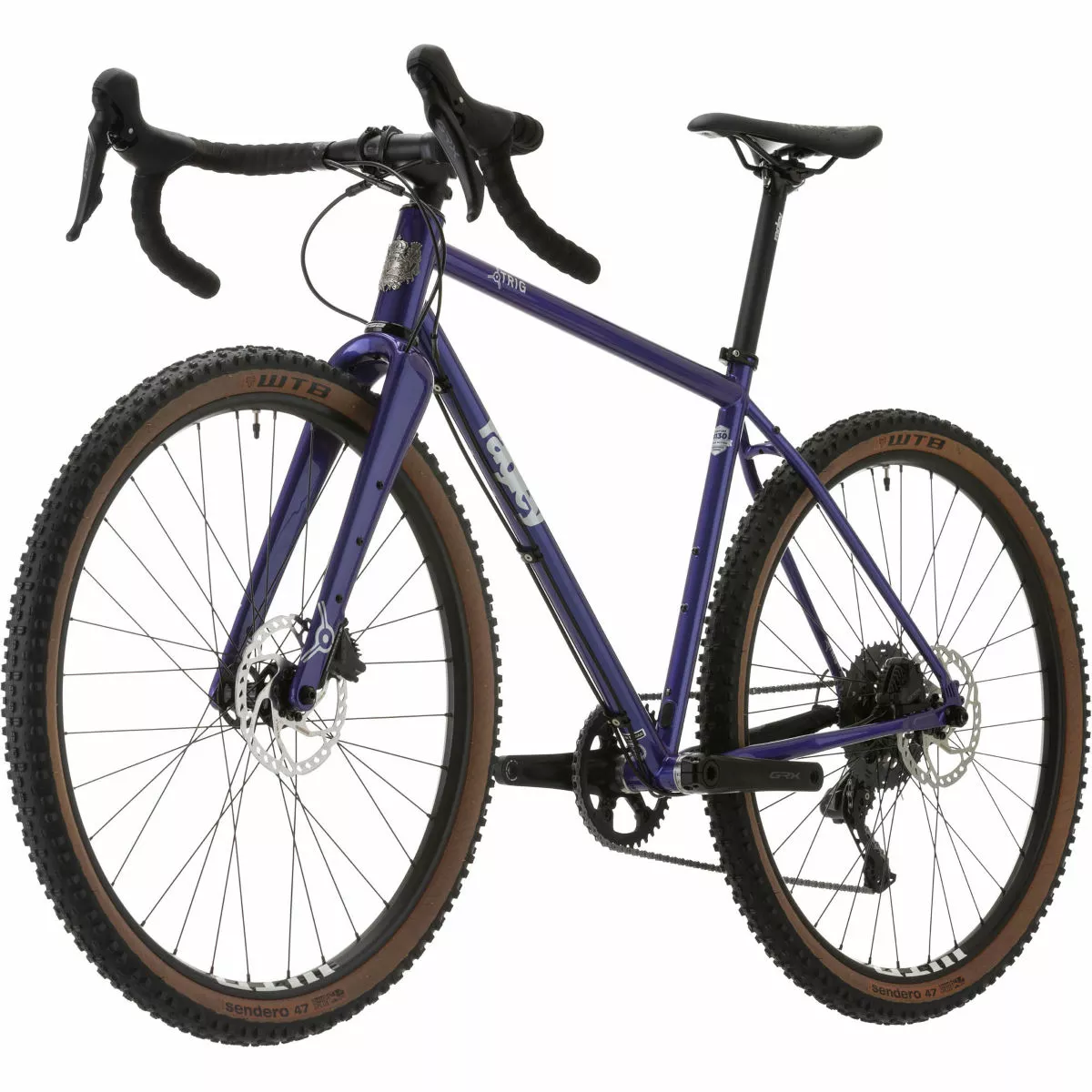

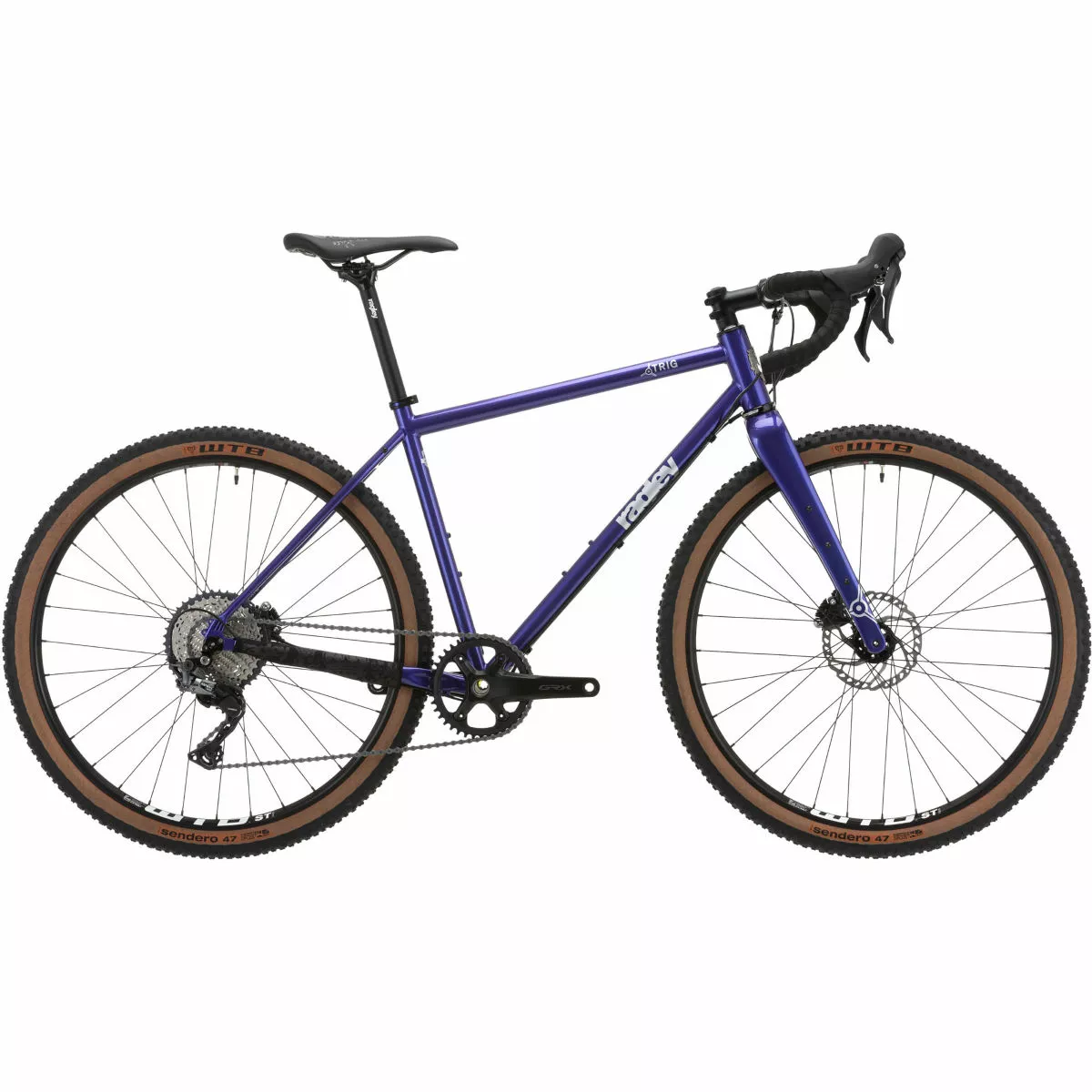

Ragley Trig Bike – Ultra Violet

The Ragley Trig features an ultra-durable Chromoly (CrMo) frame that soaks up the buzz from the terrain to increase rider comfort when riding off-road. This lightweight and stylish frameset is equipped with a Shimano GRX 1×11-Speed groupset that offers a wide gear range for conquering steep climbs and all-day pedalling efficiency while GRX hydraulic disc brakes provide exceptional all-weather stopping power. It also rolls upon Nukeproof Neutron hubs laced into WTB ST i30 Tubeless Ready rims wrapped in 670b (27.5″) WTB Sendero all-terrain tyres.

The Trig has been a firm favourite for a massively diverse group of riders. We have seen them fully loaded for multi-day adventures, shod with slicks as an urban commuter, or just ridden stock for local lockdown sanity missions.

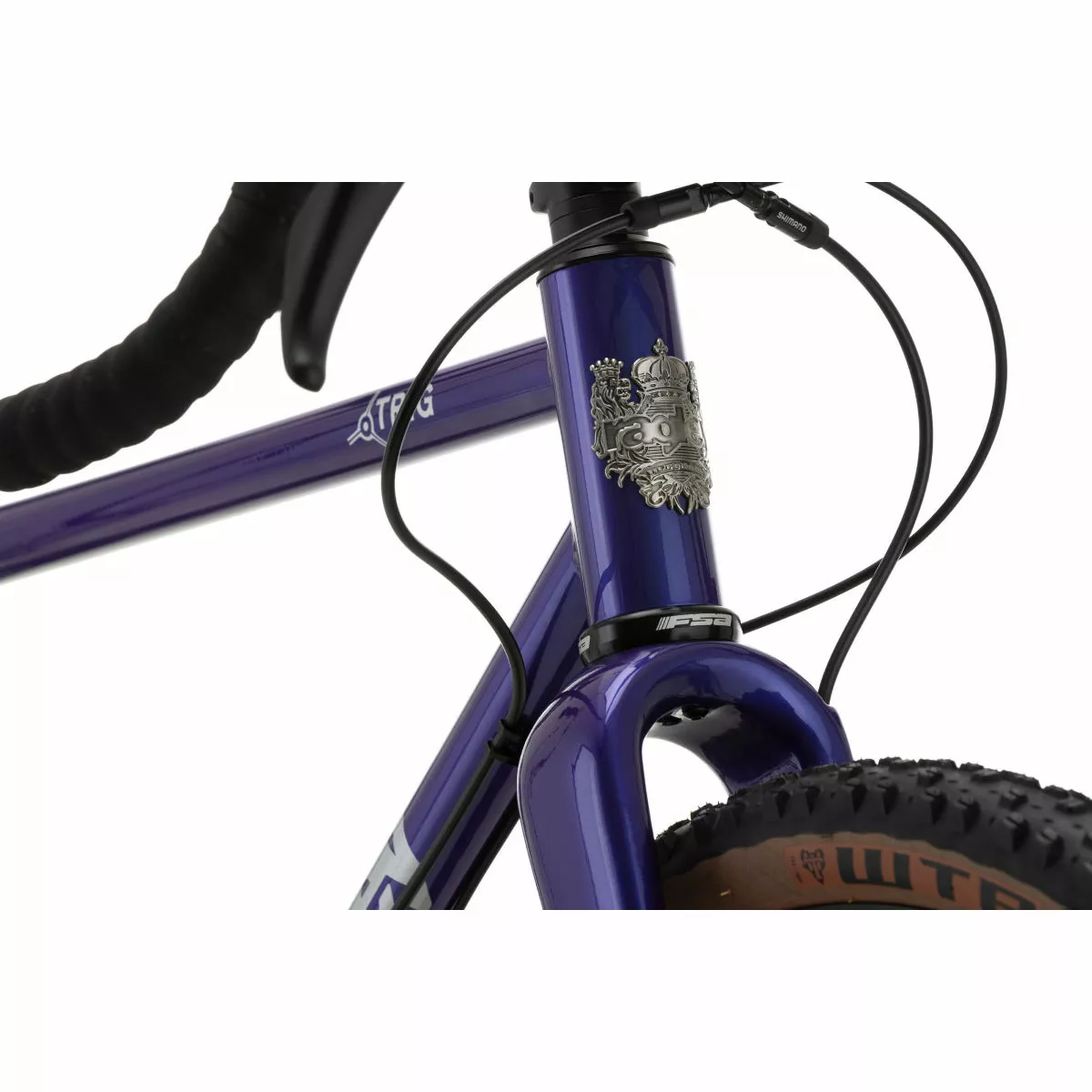

The Trig frameset features a 44mm headtube, multiple bottle cage mounts and tyre clearance to run any 700 or 650 gravel tyre option you want (and up to 2.1” wide MTB tyres on 27.5” wheels). Want to get a little rowdier with your drop-bar endeavours? It’s even dropper post compatible for future off-road biased upgrades.

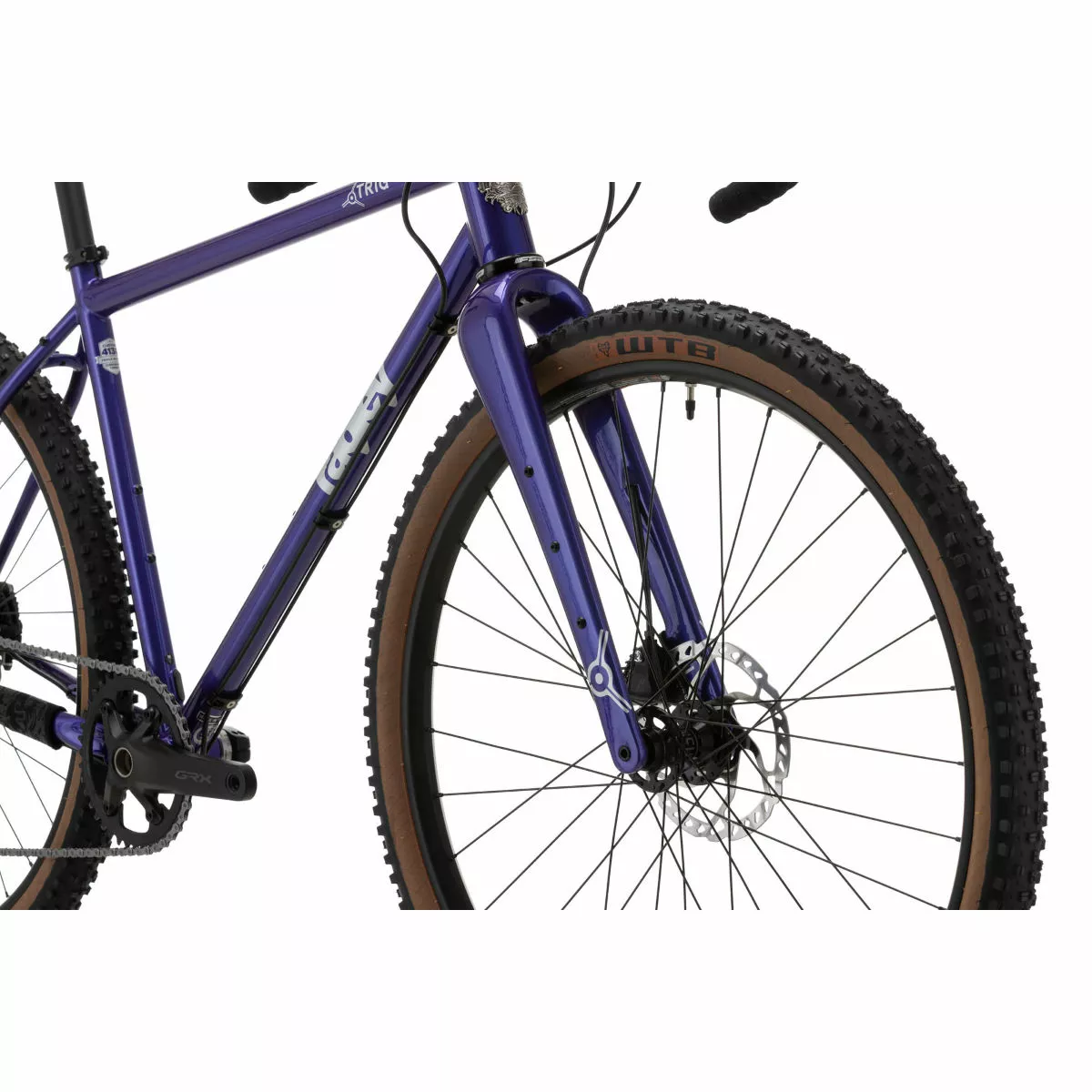

The frame is engineered from custom triple-butted 4130 Chromoly steel tubing resulting in a frame that is lightweight and supple enough to provide comfort on longer trail rides whilst robust and stiff enough to take some serious abuse. The carbon fork features a 12mm thru-axle and the mounting points you need to take to the backcountry.

We’re not going to pigeonhole the trig as gravel or adventure anymore. It’s all the same thing. We just made a super fun and reliable bike for you to go find your own adventure.

Features:

Frame: Ragley Trig 4130 Chromoly (CrMo)
Fork: Ragley Carbon Disc Fork, 12mm x 100mm, Flat Mount
Headset: FSA NO.9M,1 1/8-1.5 Tapered
Compression Device: FSA TH-883-1 Compressor

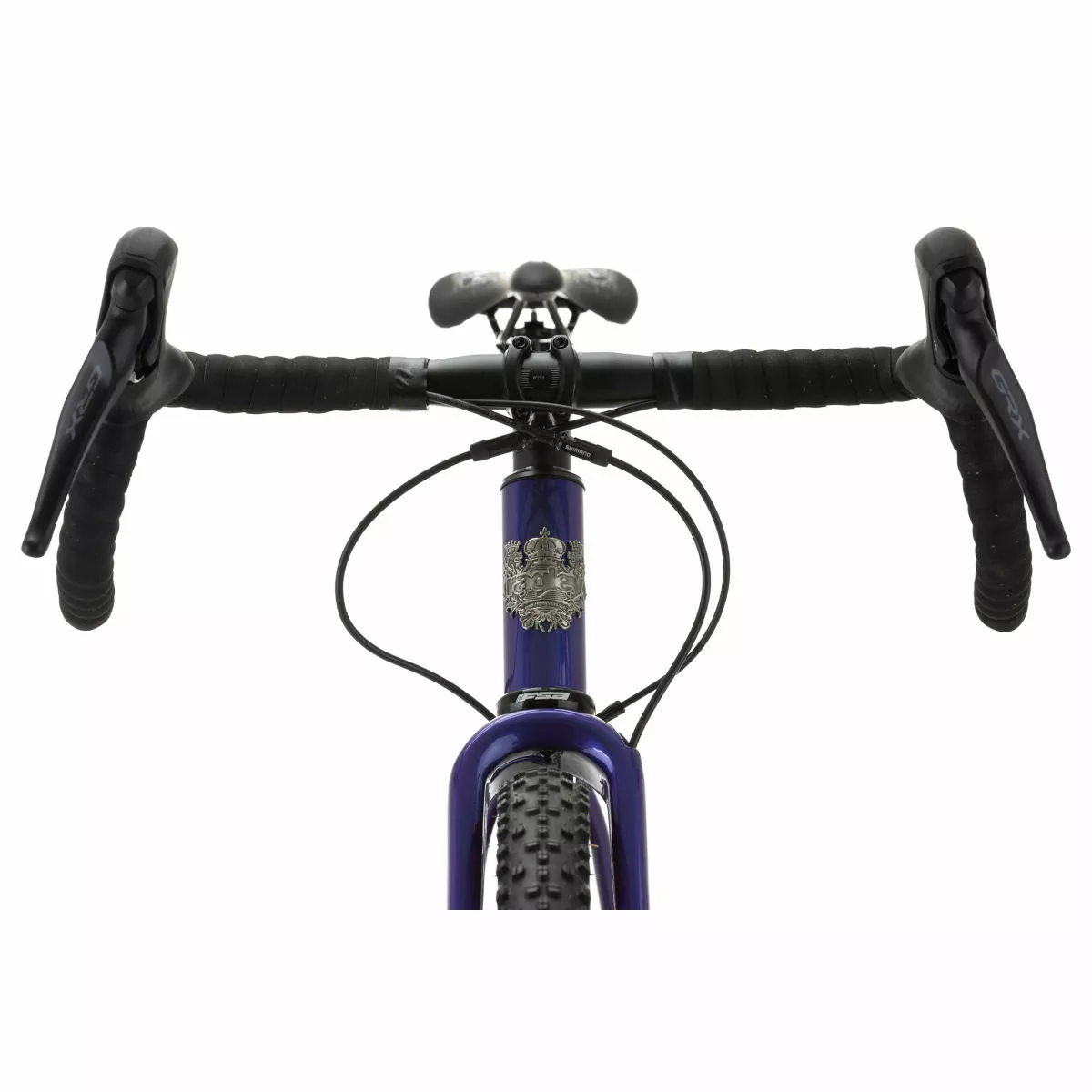

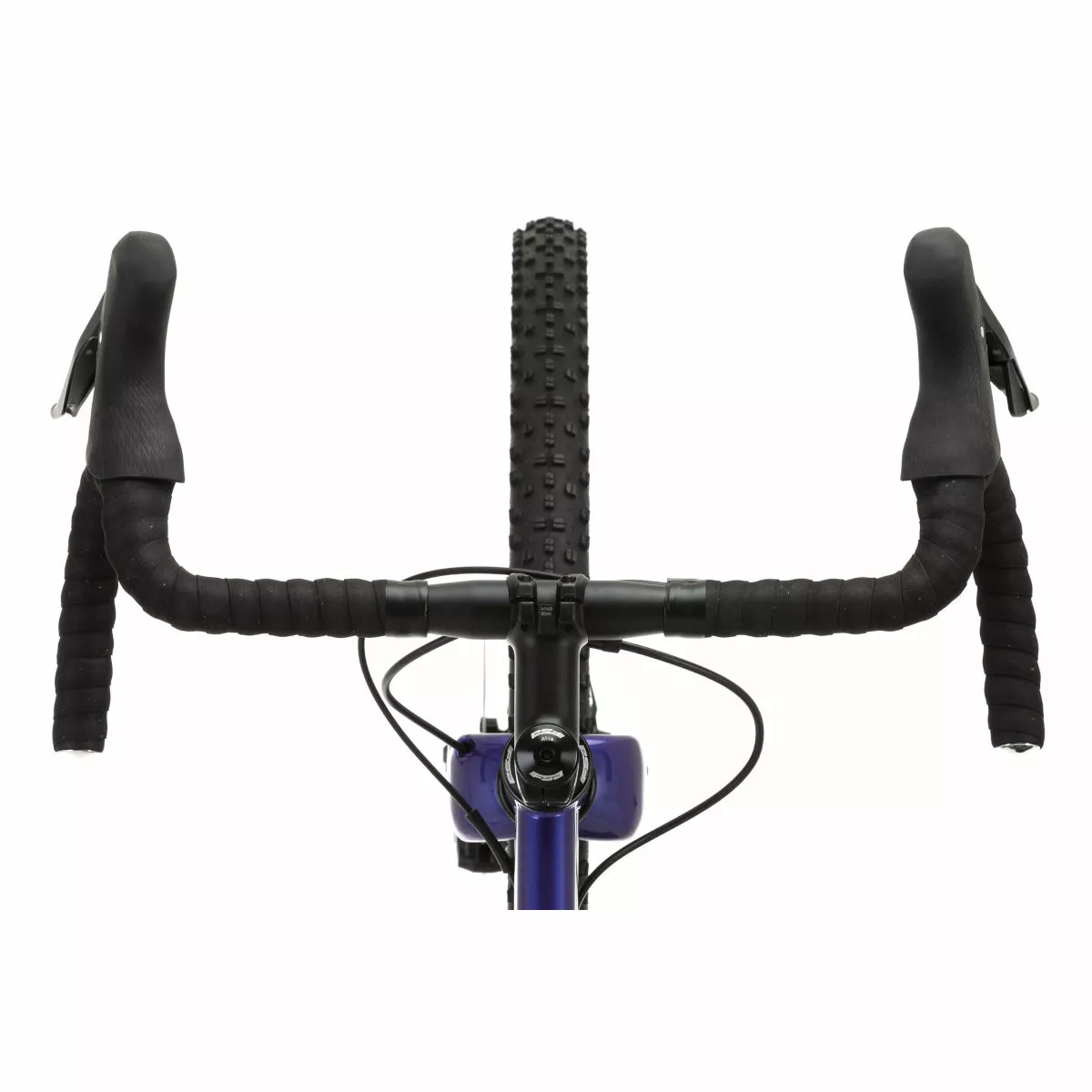

Handlebar: Ragley Alloy, 31.8mm, 48cm-400mm Wide, 50cm-420mm Wide, 52/55/58cm-440mm Wide
Stem: Ragley, 31.8mm Clamp, 7 Degree Rise, 48 / 50cm:70mm, 52cm:80mm, 55 / 58cm:90mm
Bar Tape: Ragley Black cork cushion tape with bar end plug
Front Wheel: Nukeproof Neutron Hub, 12mm x 100mm, Sealed bearings, 32h, 6-bolt disc on a WTB ST i25 TCS 2.0 Rim 650b (taped for tubeless)
Rear Wheel: Nukeproof Neutron Hub, 36 points of engagement, 142mm x 12mm, Sealed bearings, 32h, HG Freehub, 6-bolt disc on a WTB ST i25 TCS 2.0 Rim 650b (taped for tubeless)
Front Thru Axle Spec: Diameter: 12mm, Pitch:1.5, Length:120mm
Rear Thru Axle Spec: Diameter 12mm, Pitch 1.75, Axle Length 167mm, Thread Length: 20mm
Front Tyre: WTB Sendero 650b x 47c Tan Sidewall, Dual DNA Compound, Lightweight Tubeless Casing, TCS Aramid Bead
Rear Tyre: WTB Sendero 650b x 47c Tan Sidewall, Dual DNA Compound, Lightweight Tubeless Casing, TCS Aramid Bead
Chain: KMC X11-EPT, Quick-Link, 11-Speed

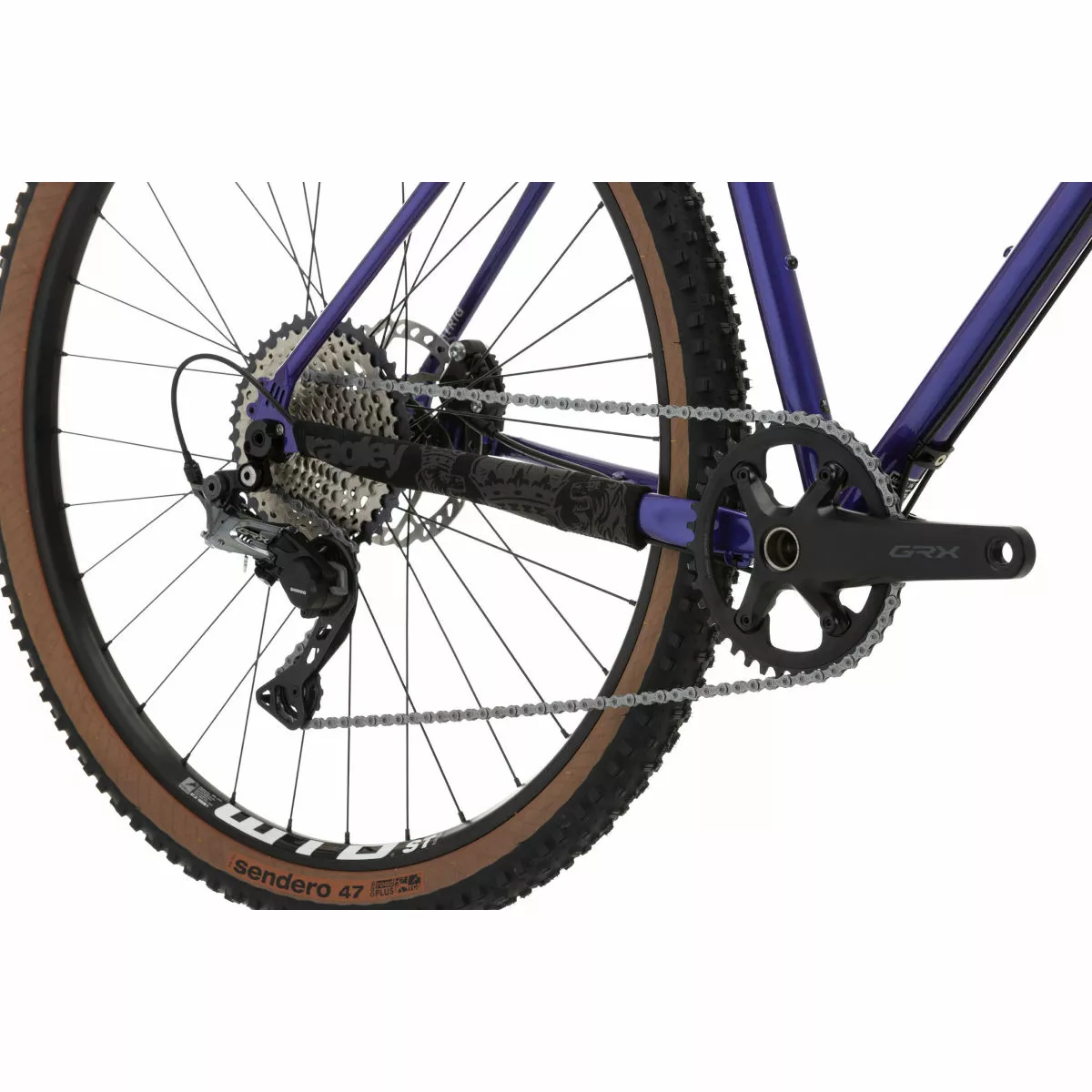

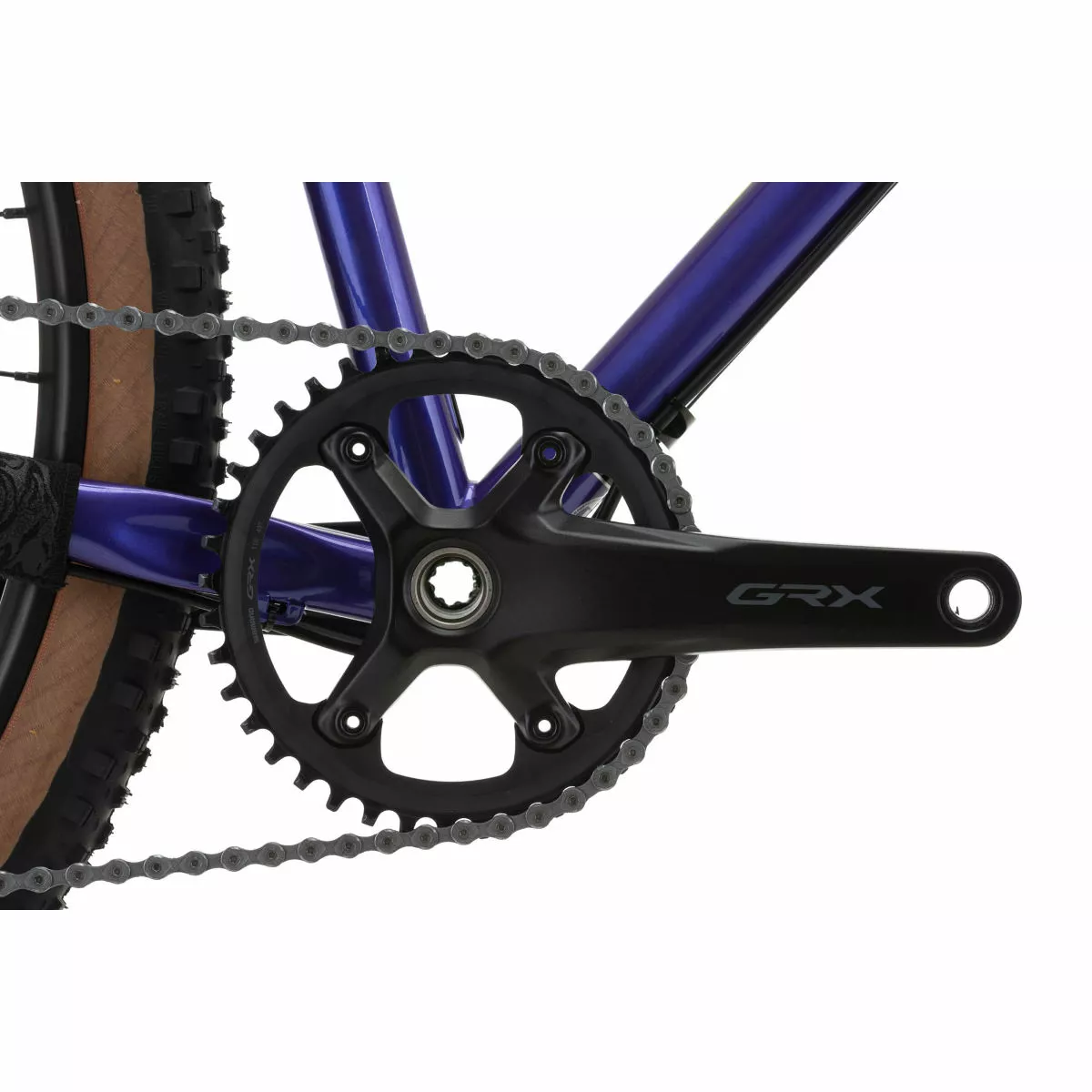

Crankset: FSA Omega, 170mm
Bottom Bracket: FSA BB-4000 Megaexo BSA

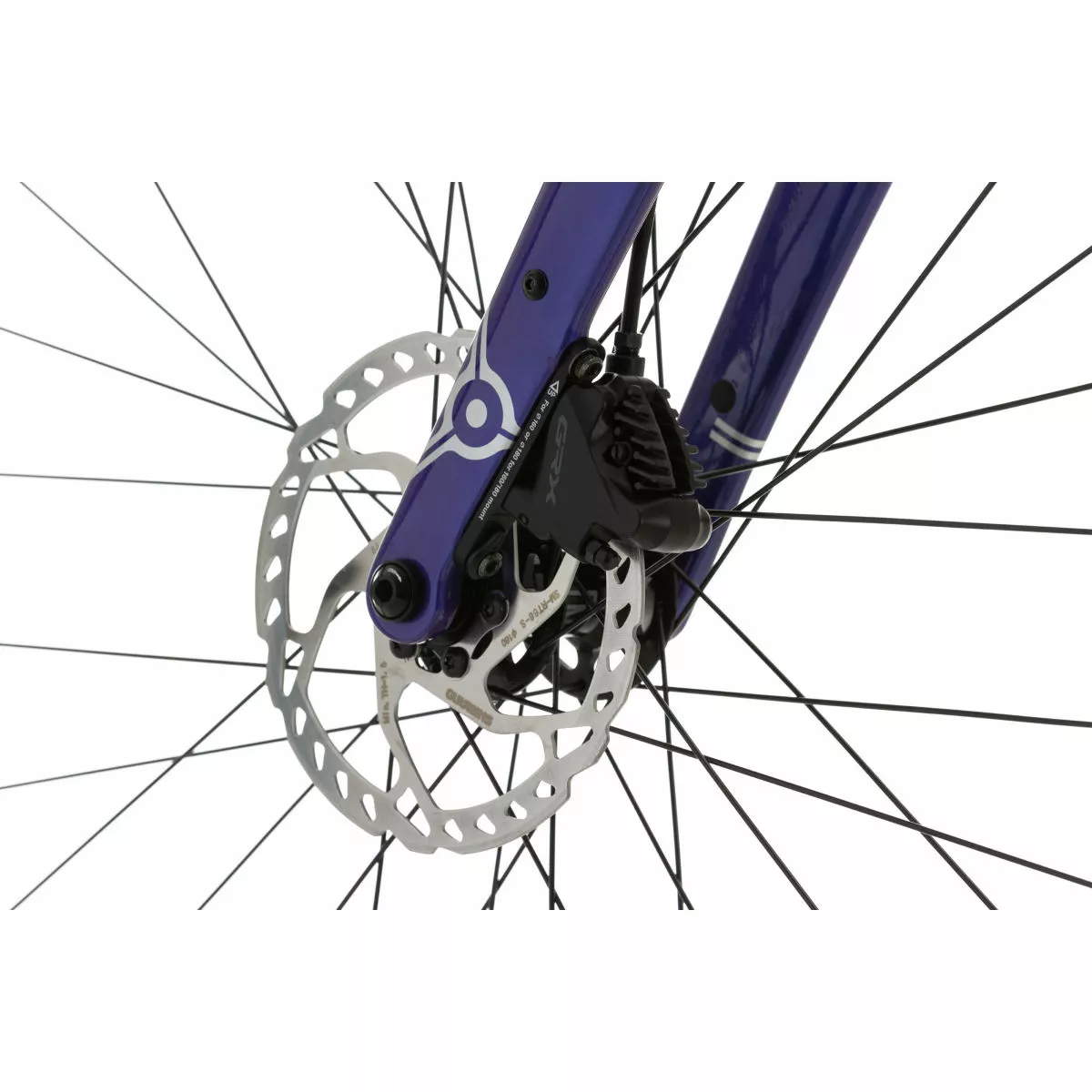

Front Brake: Shimano GRX RX600 lever with RX400 calliper, 160mm RT66 rotor, Resin pads with fin

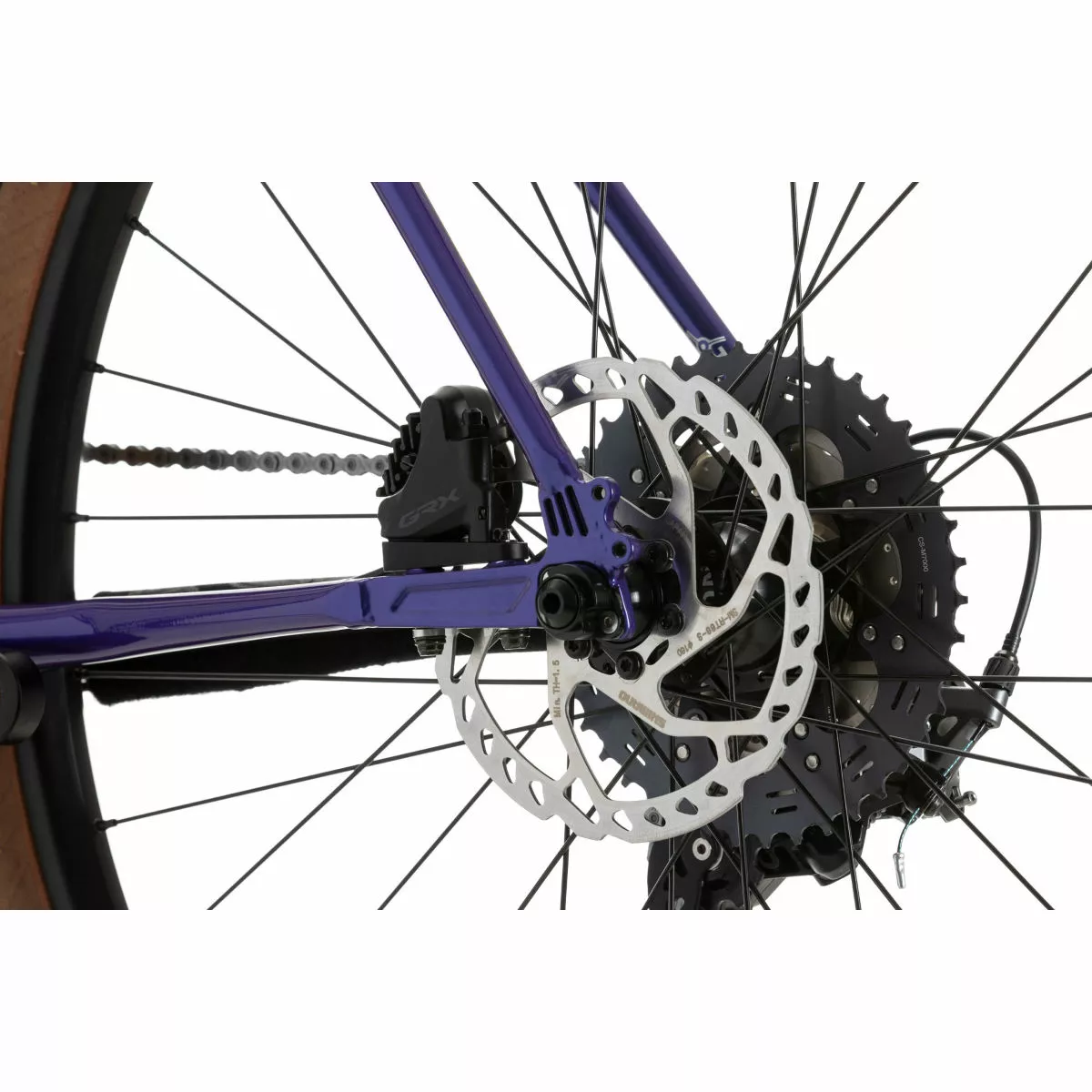

Rear Brake: Shimano GRX RX600 lever with RX400 calliper, 160mm RT66 rotor, Resin pads with fin
Rear Derailleur: Shimano GRX RX812 11-Speed, Shadow Plus
Rear Shifter: Shimano RX600 11-Speed
Drivetrain Cables: Shimano
Cassette: Shimano SLX M7000 or XT M8000, 11-Speed, 11-42

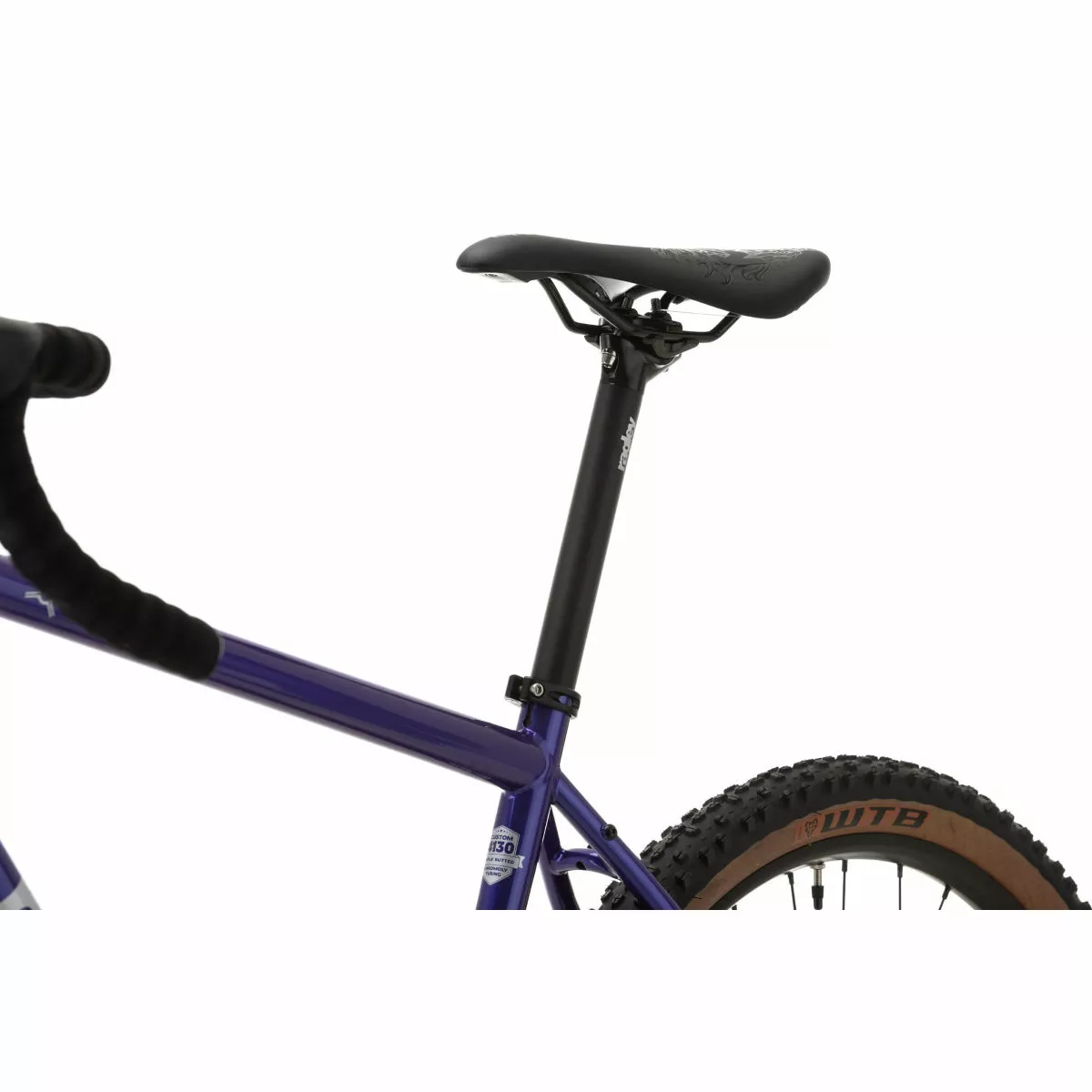

Saddle: Ragley Tracker
Seat Post: Ragley 27.2mm x 400mm
Seat Screw: Ragley 29.8mm

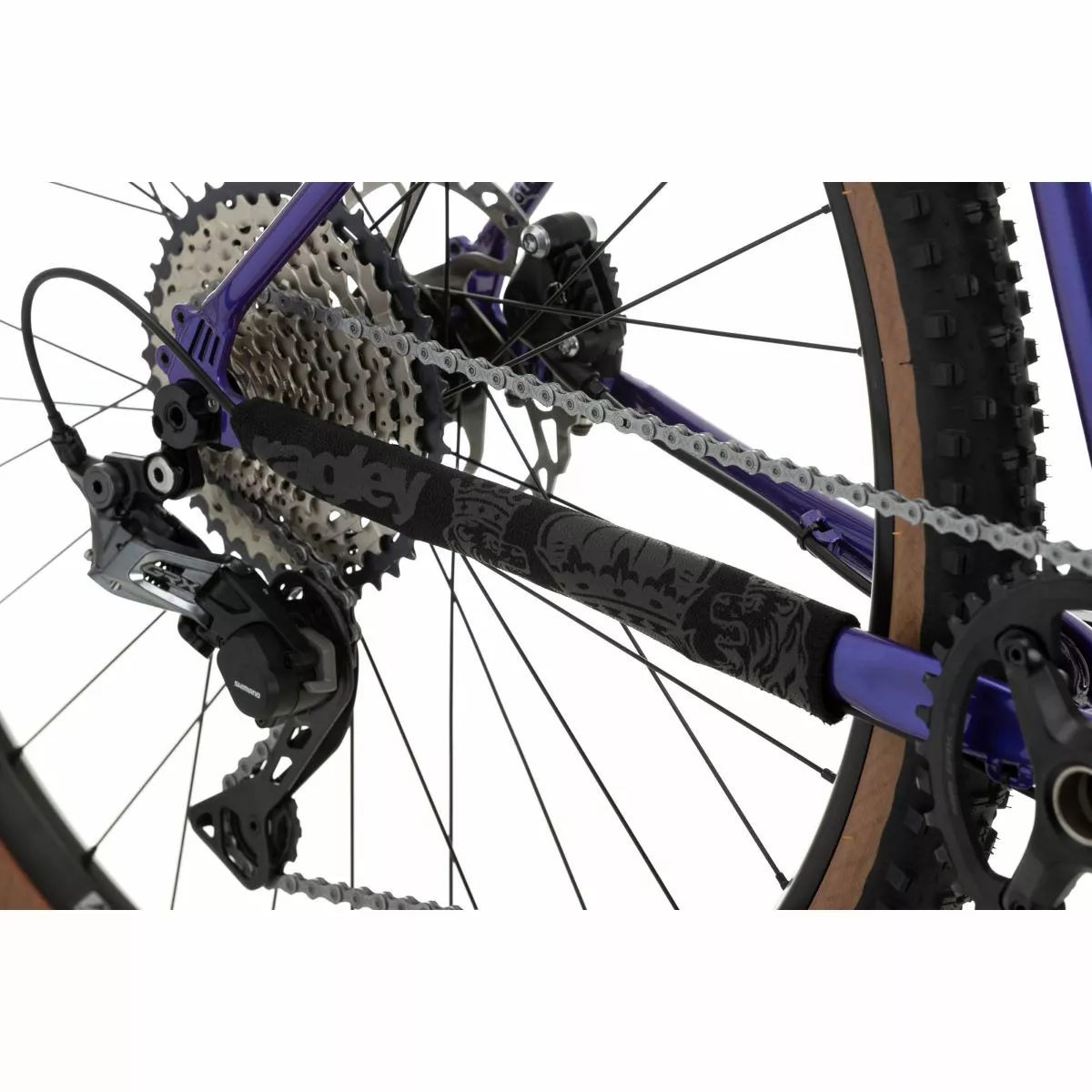

Also included: Ragley Chainstay protector, tubeless valves
5 Year Warranty and lifetime crash replacement
ISO 4210 Certified

Built, Tuned and Ready to Ride

Rest assured that each bike is fully built and tuned by Wiggle’s team of qualified bike mechanics to ensure your bike arrives in perfect condition. We supply all bikes with a set of plastic pedals, a pedal wrench and a multi-tool kit. Find out which size fits you by clicking the size chart tab.

Please Note: Due to ongoing issues in the global bike supply chain, manufacturers may substitute certain component items due to availability. In this situation, they will be replaced with the same quality or better performing parts.
